Precision Irrigation Controller (PIC) & Substrate Sensor Quick Start Guide

Setup Instructions for Crop Steering & Substrate Monitoring Equipment

GRW_PIC_Enclosure_Wet_Cropped

050323_Growlink_Probe Styled_Transparent

TDR_Growlink_084_Cropped

M8 Adapter Cable for TEROS12

Table of Contents


  1. Precision Irrigation Controller Technical Specifications
  2. Features
  3. What's In the Box
  4. Controller Installation
  5. Terralink Sensor Installation
  6. TEROS 12 Sensor with Adapter Cable Installation
  7. TDR Sensor Installation
  8. Sensor Placement
  9. Mobile App Setup Guide
  10. Irrigation With Crop Steering
  11. Troubleshooting

Precision Irrigation Controller Technical Specifications




Power: 24VAC or 24VDC (v11 and newer) using provided power supply
SDI-12 Sensor Input(s): 12 VDC Power
  3.3v Signal
Output: 4x 24 VAC / 1A Fused
Ethernet (available on PIC v11 and later)

CAT5e or CAT6

Wi-Fi 2.4 GHz

Features




Remote Access - Manage and monitor your climate and substrate remotely and quickly adjust strategies from a smartphone, tablet, or laptop - anytime, anywhere.

Multi-Sensor Compatablity - The PIC may currently be used with Growlink Terralink, Acclima TDR or Meter Group TEROS 12 (with the appropriate adapter cable), providing the ultimate choice to use the sensor you like best.

Substrate Selection – The Precision Irrigation Controller can be configured to accurately measure and report using several types of growing substrates.

OTA Updates - Our controllers regularly receive over-the-air software updates that add new features and enhance existing ones over Wi-Fi or ethernet.

Alerts - Stay informed on all active and historical alerts from your Growlink systems via email, text or push notifications through the Growlink Mobile App (if push notifications are enabled on your device).

Fanatical Support - Free support from a Growlink specialist (during office hours).

What’s In The Box


1x Precision Irrigation Controller

1x 24V Power Supply

1x Mounting Hardware Kit

Varying quantity of Substrate Sensors based on order.

Controller Installation




  1. Mount the PIC to a solid vertical surface such as a wall or vertical rack structure which is located as centrally as possible to where the sensors will be installed. Use the provided hardware mounting kit or suitable hardware for your mounting surface and attach the PIC to the surface using the mounting tabs located on the top and bottom of the controller's enclosure.
  2. Connect the provided power adapter to the 'Power' terminal located on the Irrigation control board inside the enclosure.
  3. Plug the power adapter into an appropriately rated receptacle for your country using the correct adapter prongs provided.
  4. If a hardwired internet connection is desired and the PIC has an ethernet port (older versions do not have an ethernet port), connect a CAT5e or CAT6 cable with an RJ45 terminated on the cable end to the PIC ethernet port. Connect the other end to your internet router or network switch directly. Do not connect this cable to a booster or wireless adapter.
    1. Important: Do not connect this ethernet cable to a PoE (Power over Ethernet) port on a network switch. The PIC does not need PoE.

Terralink Sensor Installation

terralink



Find generic wiring diagram examples for both multiple and single Terralinks per channel here.

Terralink Wiring Diagrams

Single Terralink per PIC Channel Installation

  1. The Terralinks are connected directly to the zone terminals of the PIC indicated in the provided wiring diagram (see Terralink Wiring Diagrams link above). If multiple sensors will be used per zone, proceed to the next section for daisy chaining instructions.
  2. Strip the wire insulation off the cable ends and insert each color wire in the appropriate terminals of the PIC as indicated on the wiring diagram. *Note: If the cable needs to be extended to reach the PIC, you may extend this cable with 18AWG (1mm) / 3 Conductor cable. The total cable length, including the provided cable attached to the sensor, should not exceed 175' (53.3m).
      1. Red wire to '12V' Terminal
      2. White wire to 'S' Terminal
      3. Silver (bare) wire to 'G' Terminal
  3. Use a small flat blade screwdriver (3/32”) to hand tighten all 3 screw terminals on to the copper wire. Once tightened, gently pull on each wire to ensure they are fully secured in the terminal. If any slip out, repeat the above steps. IMPORTANT: Make sure there is not any copper exposed outside of the terminals. This may lead to two conductors contacting and short circuiting the sensor.
  4. Repeat for the remaining Terralink sensors.

Multiple Terralink per channel Installation (Daisy Chaining in Commercial Applications)

*IMPORTANT: Daisy chaining sensors requires the Precision Irrigation Controller be paired with a Core controller or IoT Gateway. Daisy chaining is not possible with standalone PICs.

  1. If more than 1 Terralink sensor is intended to be used per zone,  making multiple connections with waterproof junction boxes or T-connectors must be utilized. A single junction box or daisy chain configuration may be used. Consult the example installation video and generic wiring diagrams for further installation details.
    1. IMPORTANT: A maximum of 10 Terralink sensors with unique addresses may be installed on a single zone chain. Duplicate addresses on the same chain are not compatible. Available addresses are 0,1,2,3,4,5,6,7,8 & 9.
    2. IMPORTANT: The total length of the daisy chain must not exceed 175ft (53.3m) from the PIC at the furthest point. Exceeding this distance may lead to unreliable data transmission.
  2. For each zone, run an 18/3 AWG (1mm) copper home-run cable to the 1st junction box from the PIC controller. From this point, either run 18/3 AWG wire to each subsequent junction box or directly connect Terralink sensors in the junction box.
  3. Verify each Terralink sensor address is unique within each zone chain. The address on each sensor must be unique on a single PIC input channel. Each input can support one of each sensor address (0-9) and the PIC has 4 inputs for a maximum total of 40 sensors per PIC.
  4. Strip individual conductors to expose copper then make connections using either Wago connectors, wire nuts or a similar secure wire connection method. Follow the provided wiring diagram for all connections. Make sure to keep wire color and polarity consistent throughout the entire chain.
  5. Insert each color wire in the appropriate terminals of the PIC as indicated on the wiring diagram (see 'Terralink Wiring Diagrams' link above). Then use a small flat blade screwdriver (3/32”) to hand tighten all 3 screw terminals. Once tightened, gently pull on each wire to ensure they are fully secured in the terminal.
  6. Repeat these steps for additional Terralink daisy chain zones.

TEROS 12 Sensor with Adapter Cable Installation

M8 Adapter Cable for TEROS12




Single TEROS 12 per PIC Channel Installation

  1. The TEROS 12 is connected directly to the zone terminals of the PIC using adapter cables purchased from Growlink.
  2. Align the pins of the TEROS 12 sensor cable with the adapter cable end. Connect the two ends and hand tighten the threaded barrel connector.
  3. Strip the wire insulation off the adapter cable end and insert each color wire in the appropriate terminals of the PIC as indicated below. *Note: If the cable needs to be extended to reach the PIC, you may extend this cable with 18AWG (1mm) / 3 Conductor cable. The total cable length, including the provided cable attached to the sensor, should not exceed 175' (53.3m).
      1. Brown wire to '12V' Terminal
      2. White wire to 'S' Terminal
      3. Blue wire to 'G' Terminal
  4. Use a small flat blade screwdriver (3/32” works best) to hand tighten all 3 screw terminals on to the copper wire. Once tightened, gently pull on each wire to ensure they are fully secured in the terminal. If any slip out, repeat the above steps. IMPORTANT: Make sure there is not any copper exposed outside of the terminals. This may lead to two conductors contacting and short circuiting the sensor.
  5. Repeat for the remaining TEROS 12 sensors.

TDR Sensor Installation

TDR Substrate Sensor



Find generic wiring diagram examples for both multiple and single TDRs per channel here.

TDR Wiring Diagrams

Single TDR per Channel Installation

  1. The TDR probes are connected directly to the zone terminals of the PIC indicated in the provided wiring diagram (see TDR Wiring Diagrams link above). If multiple TDR probes will be used per zone, proceed to the next section for daisy chaining instructions.
  2. Strip the wire insulation off the cable end and insert each color wire in the appropriate terminals of the PIC as indicated on the wiring diagram. *Note: If the cable needs to be extended to reach the PIC, you may extend this cable with 18AWG (1mm) / 3 Conductor cable. The total cable length, including the provided cable attached to the sensor, should not exceed 175' (53.3m).
      1. Red wire to '12V' Terminal
      2. Blue wire to 'S' Terminal
      3. White wire to 'G' Terminal
  3. Use a small flat blade screwdriver (3/32”) to hand tighten all 3 screw terminals on to the copper wire. Once tightened, gently pull on each wire to ensure they are fully secured in the terminal. If any slip out, repeat the above steps. IMPORTANT: Make sure there is not any copper exposed outside of the terminals. This may lead to two conductors contacting and short circuiting the sensor.
  4. Repeat for the remaining TDR sensors.

Multiple TDR per channel Installation (Daisy Chaining in Commercial Applications)

*IMPORTANT: Daisy chaining sensors requires the Precision Irrigation Controller be paired with a Core controller or IoT Gateway. Daisy chaining is not possible with standalone PICs.

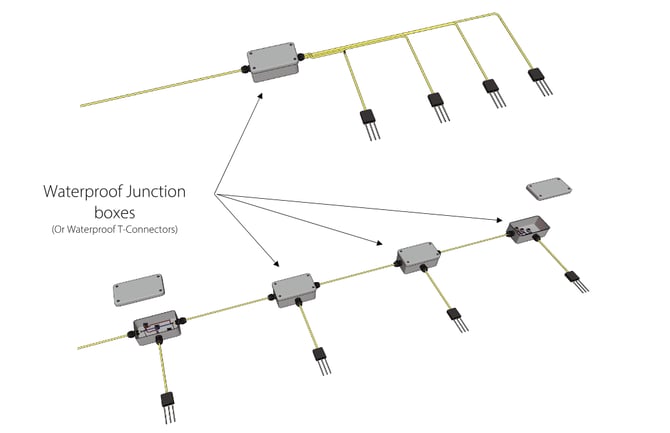

TDR Junction Box Examples

  1. If more than 1 TDR sensor is intended to be used per zone,  making multiple connections with waterproof junction boxes or T-connectors must be utilized. A single junction box or daisy chain configuration may be used. Consult the example installation video and generic wiring diagrams for further installation details.
    1. IMPORTANT: A maximum of 10 TDR sensors with unique addresses may be installed on a single zone chain. Duplicate addresses on the same chain are not compatible. Available addresses are 0,1,2,3,4,5,6,7,8 & 9.
    2. IMPORTANT: The total length of the daisy chain must not exceed 175ft (53.3m) from the PIC at the furthest point. Exceeding this distance may lead to unreliable data transmission.
  2. For each zone, run an 18/3 AWG (1mm) copper home-run cable to the 1st junction box from the PIC controller. From this point, either run 18/3 AWG wire to each subsequent junction box or directly connect TDR sensors in the junction box.
  3. Verify each TDR sensor address is unique within each zone chain. The address on each sensor must be unique on a single PIC input channel. Each input can support one of each sensor address (0-9) and the PIC has 4 inputs for a maximum total of 40 sensors per PIC.
    1. To find the address of each sensor, reference the images below.Screen Shot 2022-11-01 at 9.23.24 AM
  4. Strip individual conductors to expose copper then make connections using either Wago connectors, wire nuts or a similar secure wire connection method. Follow the provided wiring diagram for all connections. Make sure to keep wire color and polarity consistent throughout the entire chain.
  5. Insert each color wire in the appropriate terminals of the PIC as indicated on the wiring diagram (see 'TDR Wiring Diagram' link above). Then use a small flat blade screwdriver (3/32”) to hand tighten all 3 screw terminals. Once tightened, gently pull on each wire to ensure they are fully secured in the terminal.
  6. Repeat these steps for additional TDR daisy chain zones.

Solenoid Valve Wiring


Up to 4 24VAC solenoid valves can be connected to and controlled by the Precision Irrigation Controller. The solenoids must be 24VAC to operate with the PIC. Any other voltage is not compatible with the outputs.

Each solenoid must be ran directly to each output, and one cannot combine neutral wires of multiple outputs together. Doing so can irreversibly damage the outputs on the PIC.

  1. Connect the solenoid valve wires to the 4 labeled outputs on the right side of the PIC control board. The wire orientation should not matter with 24VAC valves.





Sensor Placement




Screen Shot 2021-08-07 at 9.55.42 AM



Mobile App Setup Guide


The steps below go over how to connect your PIC to your network using WiFi via the Growlink Mobile App. If your PIC has an Ethernet port, one can also connect your PIC to the network via that Ethernet port. Refer to the Ethernet Setup guide for steps on that process.

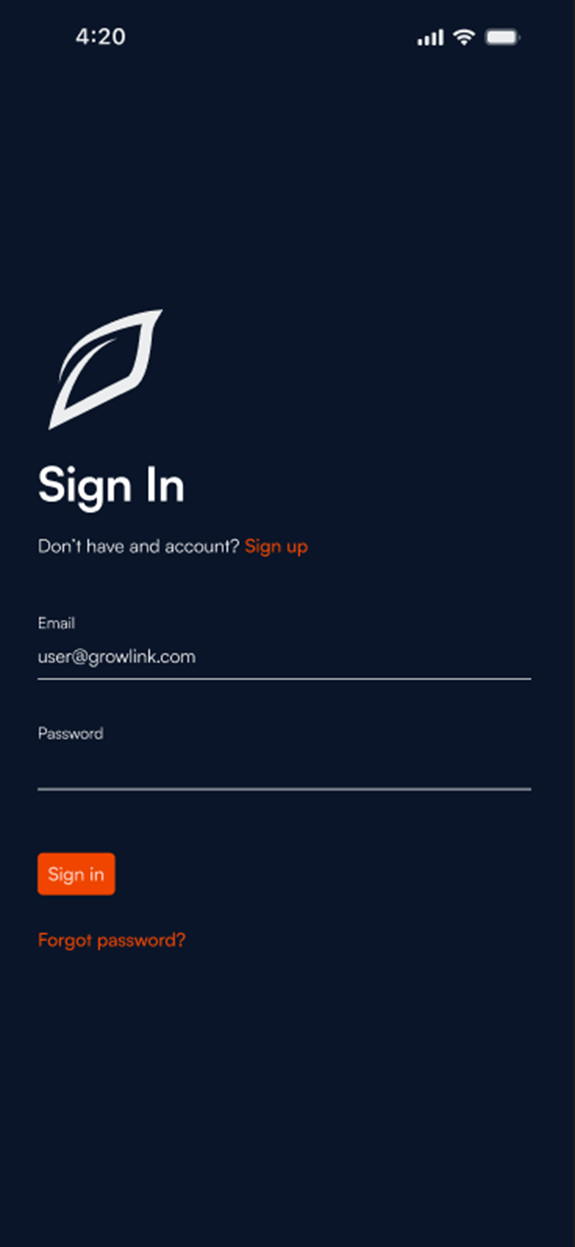

1) Login to the Mobile App using your username and password. If you have not created a username yet, click the ‘Sign Up’ button at the login page to create a username for your account:

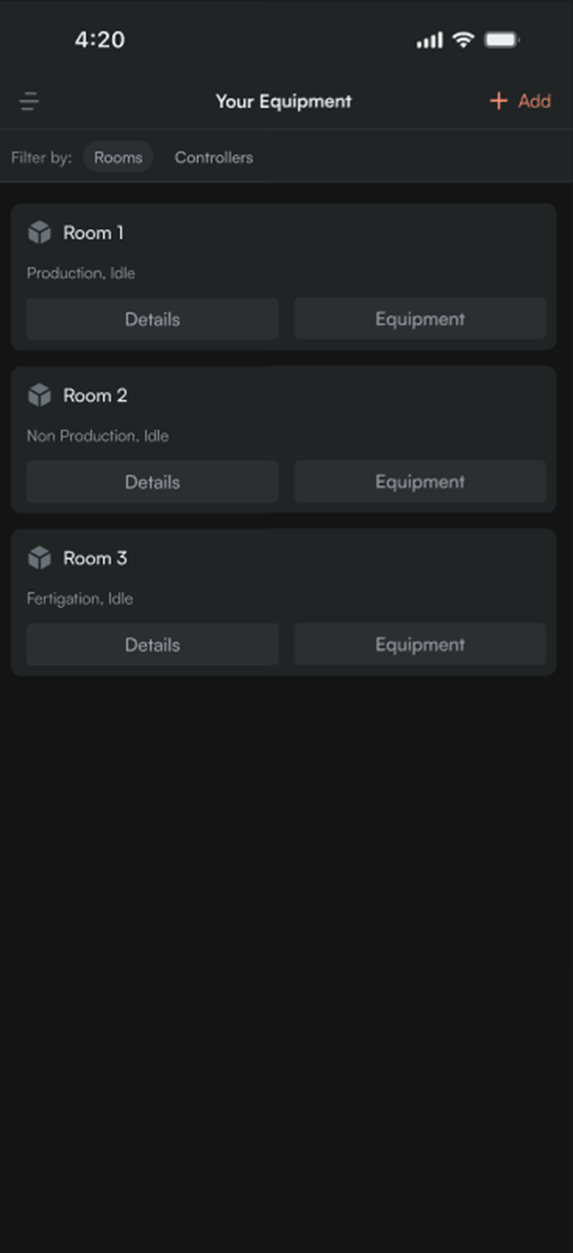

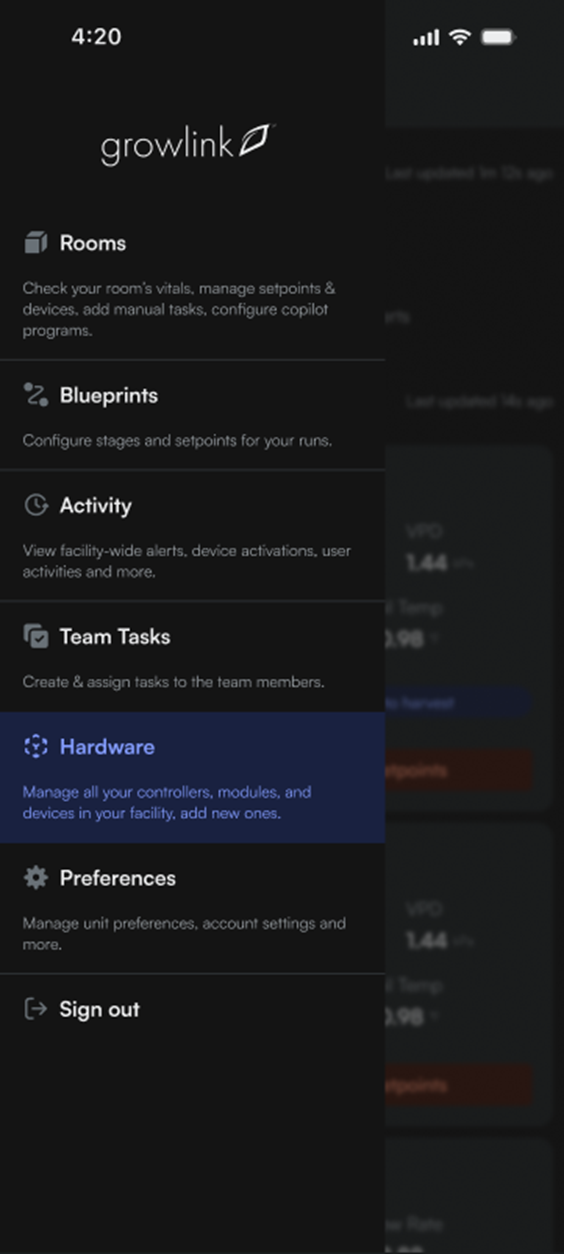

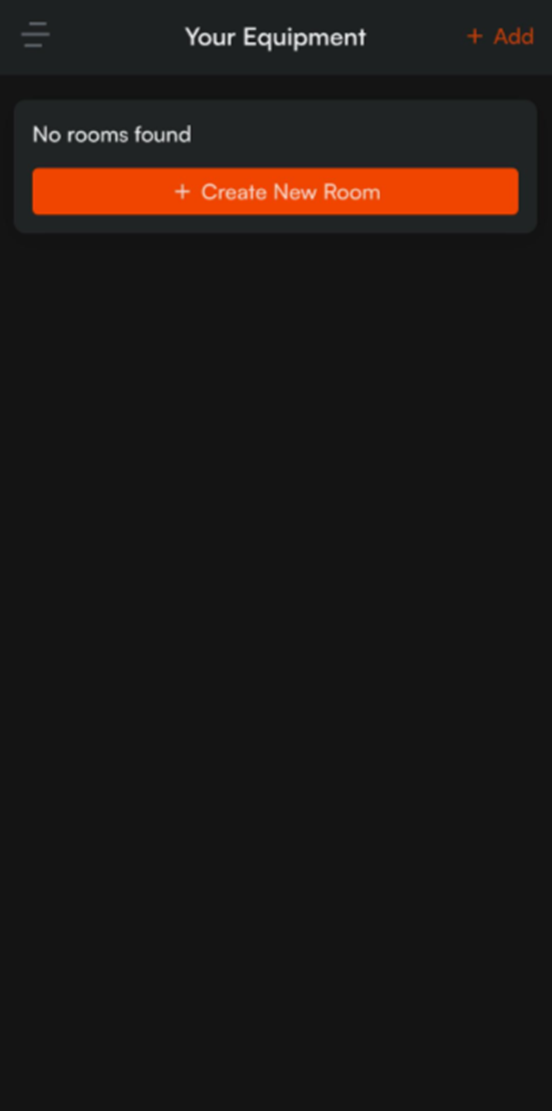

2) Once logged in, tap the icon of the lines in the top-left corner, followed by tapping the ‘Hardware’ button:

3) Tap the ‘+Add” button at the top right of the following page:

4) Select the Room you wish to add the new controller to, or tap the “Create New Room” button to create a new room for the new hardware to be added:

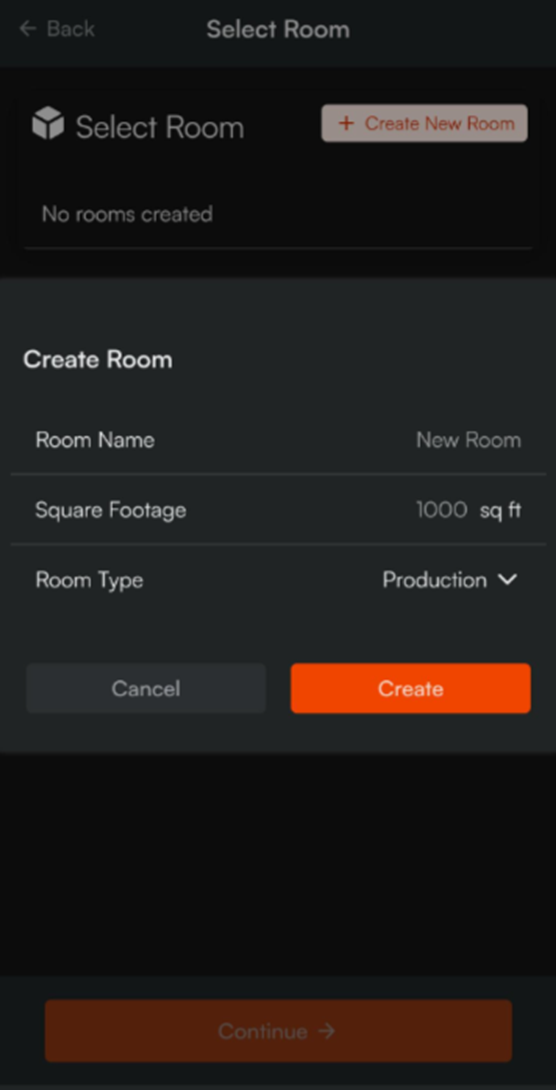

5) Provide a name for the Room, the Square Footage of the Room, and the Room Type, followed by tapping the 'Create’ Button to finish creating that room:

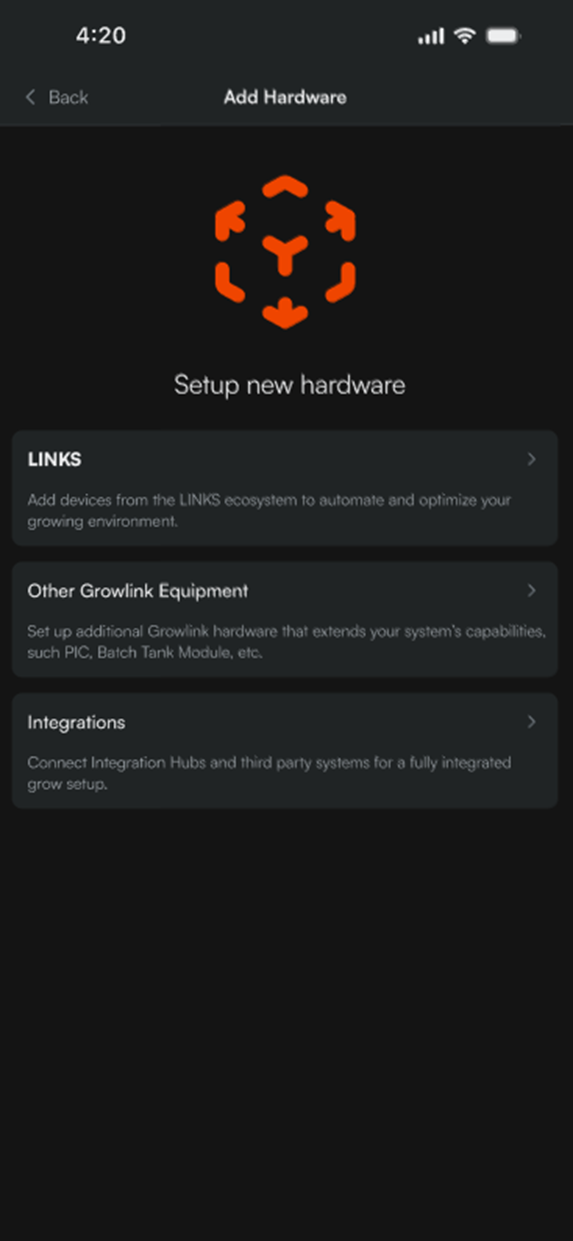

6) Select the ‘Other Growlink Equipment’ option in the subsequent menu:

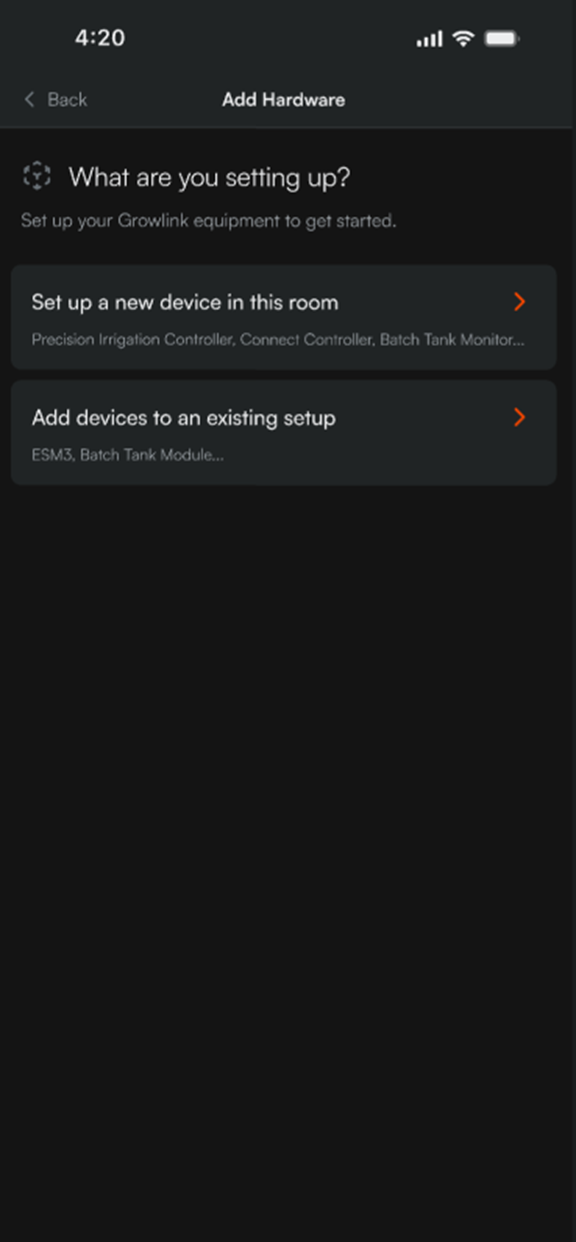

7) In the following menu, select ‘Set up a new device in this room’:

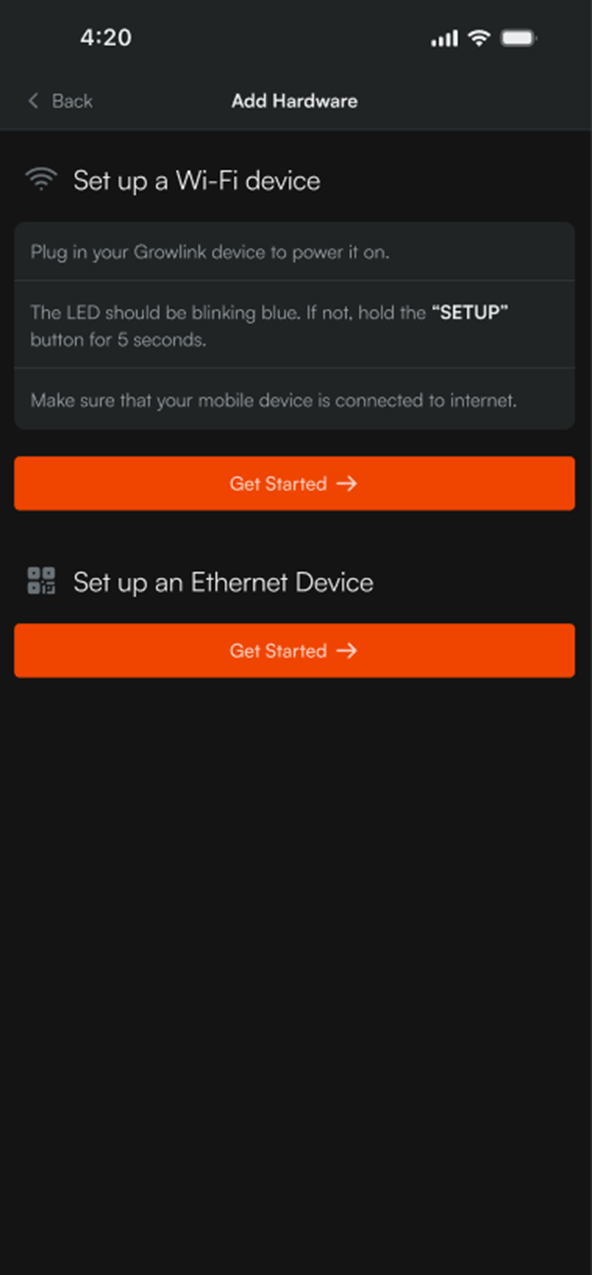

8) Next, tap the ‘Get Started’ button underneath the ‘Set up a Wi-Fi Device’ section:

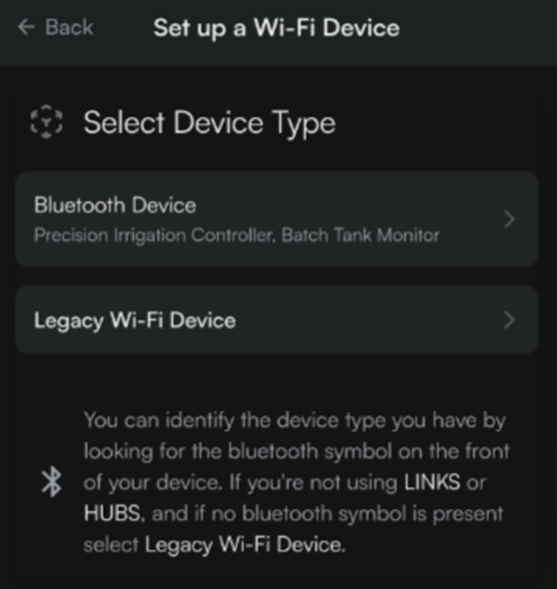

9) The following screen will then attempt to pair your phone with the Wi-Fi capable device. Select the appropriate pairing method for your device. Devices that pair via Bluetooth will have a Bluetooth symbol on their enclosure and older Legacy Devices without that symbol pair via a temporary WiFi SSID:

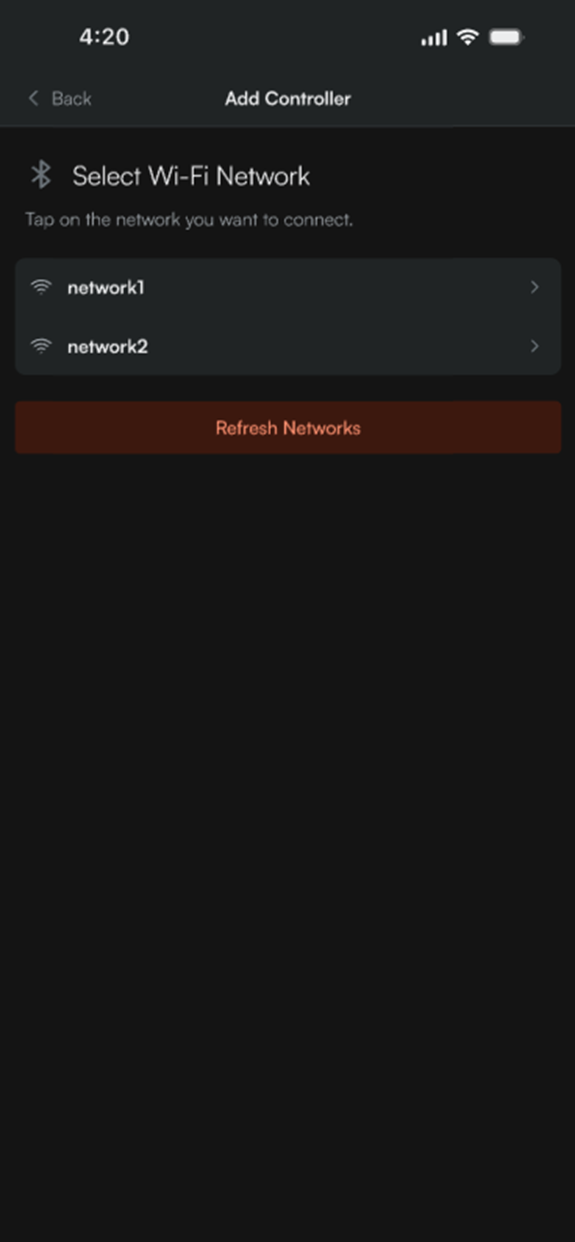

10) Once the controller is paired to your phone, you will then select the WiFi network you wish to connect the controller to, followed by inputting the password for that network:

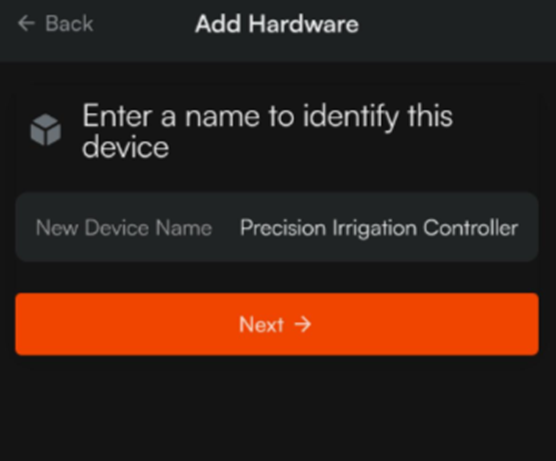

11) Once WiFi credentials have been provided, all that is left is to name the controller and tap the ‘Next’ button on the following screen. The Mobile app will then attempt to register the controller to your account and pass those credentials towards the controller:

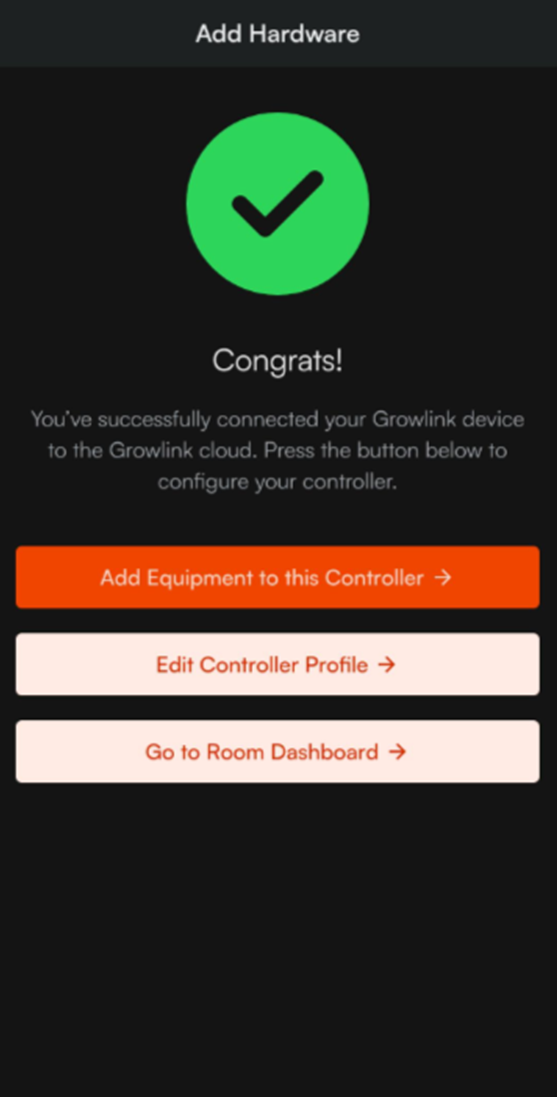

12) Once successfully connected, the following success message will display. Tap the ‘Add Equipment to this Controller’ to add more hardware to this controller, Tap the ‘Edit Controller Profile’ button to update the Controller Profile Settings, or tap the ‘Go to Room Dashboard’ button to view the dashboard for the newly connected controller:

Irrigation with Crop Steering


Learn more about Growlink's advanced, AI driven crop steering programs called Copilot and Autopilot here:

Growlink Copilot Crop Steering Guide

Growlink Feature Webinars

A Growlink Pro subscription is required to access advanced features like Copilot and Autopilot by utilizing the Growlink Web Portal. See subscription pricing and features here: Growlink Controls Software



To receive a complete guide on what Crop Steering is, visit this link  scroll to the bottom of the page and enter your e-mail to receive our free e-book.



Troubleshooting


Sensor readings not showing up on all inputs OR input ports were moved from original placement: If you are not seeing all sensors showing up on the Dashboard or are seeing incorrect readings after moving input terminals, press the Reset button located on the front of the controller.

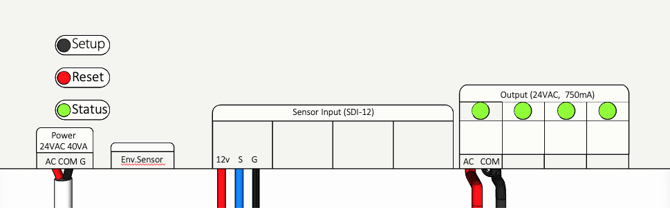

Screen Shot 2022-11-08 at 11.20.40 AM



Controller didn't connect to Wi-Fi: If you are unsuccessful in the first attempt to connect your controller to a Wi-Fi network, hold down the Setup button located on the front of the controller for approximately 12-15 seconds until you see a rapid flashing blue light. Once you see the rapid flash, immediately release the Setup button. This will put the controller into Listening Mode (Blinking Blue), and you will then restart the connection process outlined in step 4 of this guide.



The Wi-Fi network or password has changed: In the event you need to re-connect the controller to a Wi-Fi network, put the controller back into Listening Mode (see above) and follow the Controller Connection process outlined in step 4.



Controller LED Status Light Color Codes

  During device setup and operation, these are the LED light indicators:

  • Solid White: Firmware Startup
  • Slow Flashing Green: Wi-Fi connecting
  • Fast Flashing Green: Wi-Fi waiting on IP address
  • Fast Flashing Cyan: Wi-Fi connected, connecting to cloud
  • Fast Breathing Green: Loading configuration and detecting probes
  • Slow Breathing Green: Connected to cloud and running
  • Slow Flashing Blue: Wi-Fi configuration mode
  • Safe Mode: Slow breathing magenta
  • Safe Mode Requested: Fast flashing magenta
  • Firmware Updating: Slow flashing magenta
  • Slow Flashing Blue: Wi-Fi setup mode
