Follow the steps below in order to setup a Wifi-capable controller, such as a LINKS Hub, Precision Irrigation Controller, or Batch Tank Module:

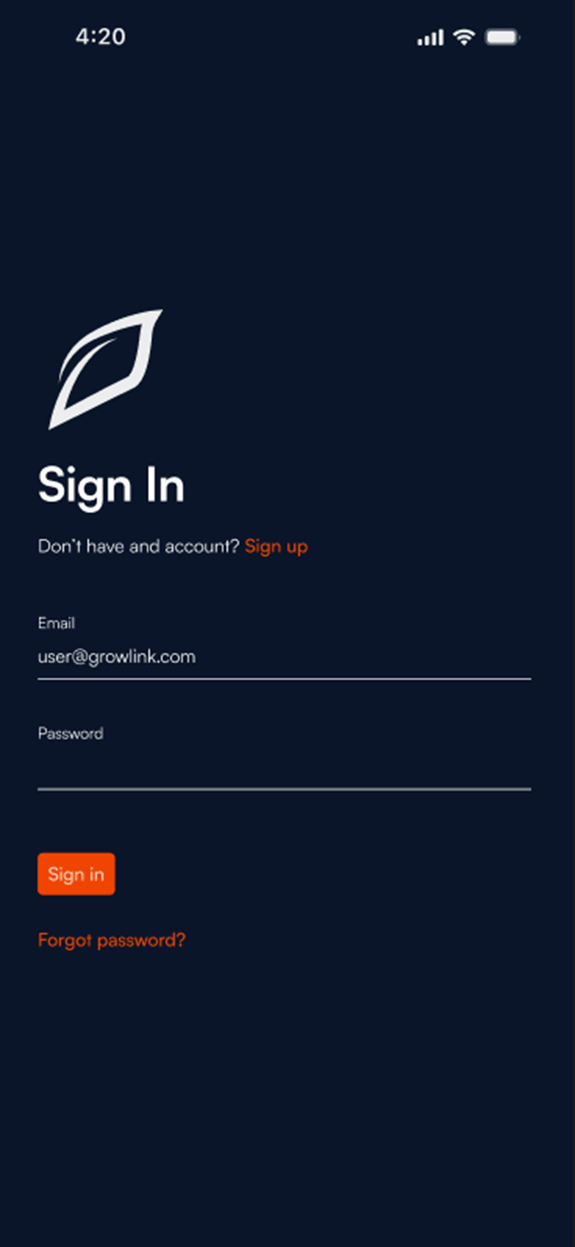

1) Login to the Mobile App using your username and password. If you have not created a username yet, click the ‘Sign Up’ button at the login page to create a username for your account:

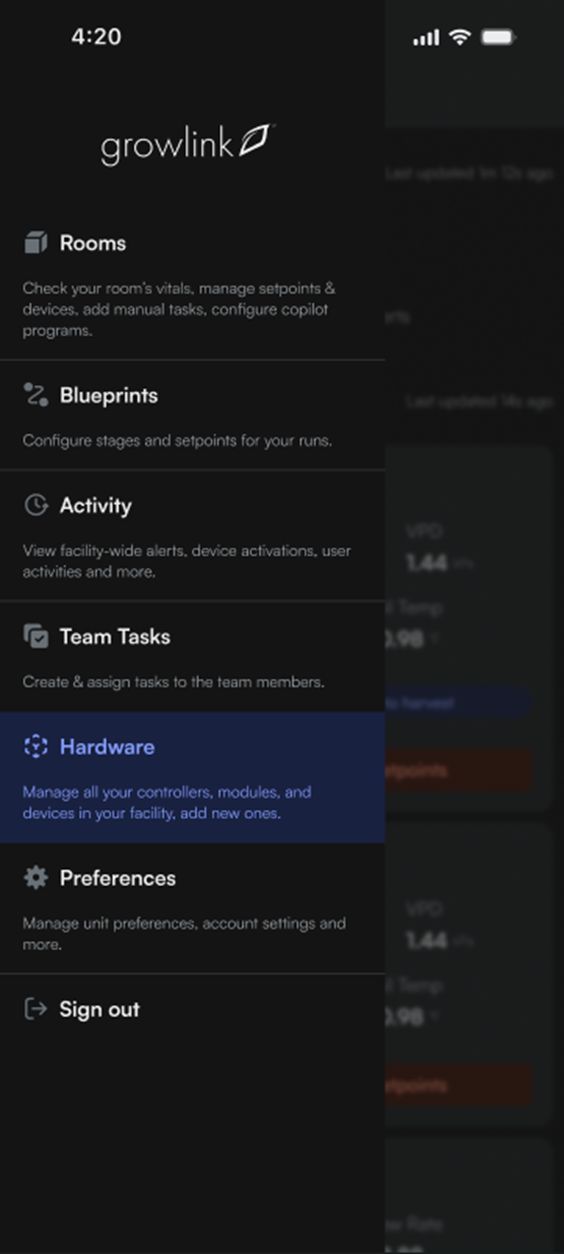

2) Once logged in, tap the icon of the lines in the top-left corner, followed by tapping the ‘Hardware’ button:

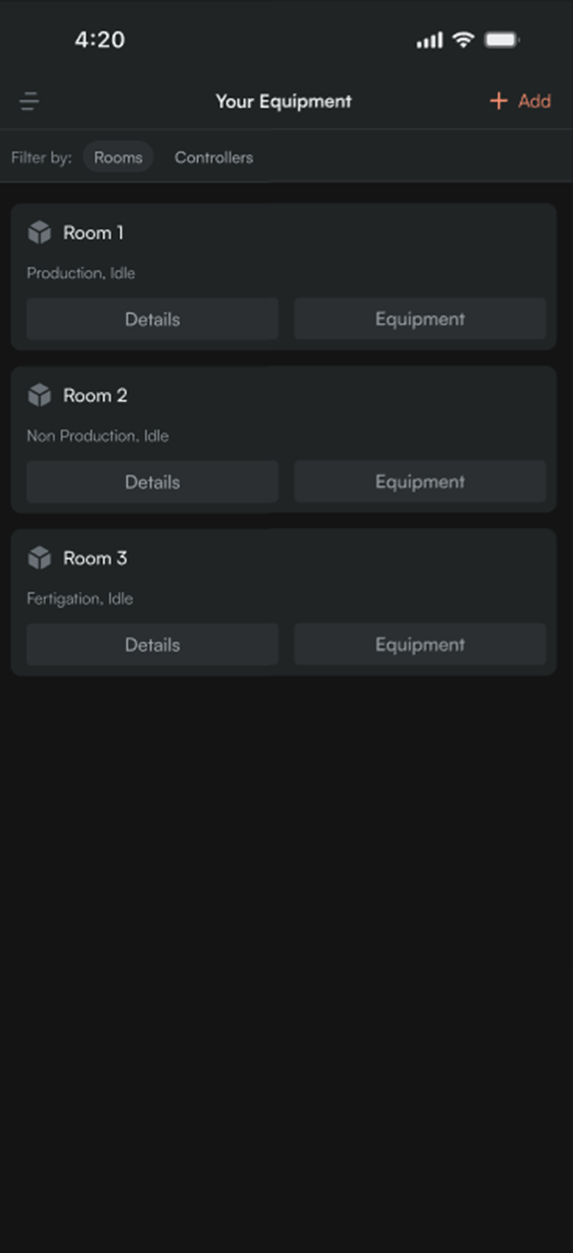

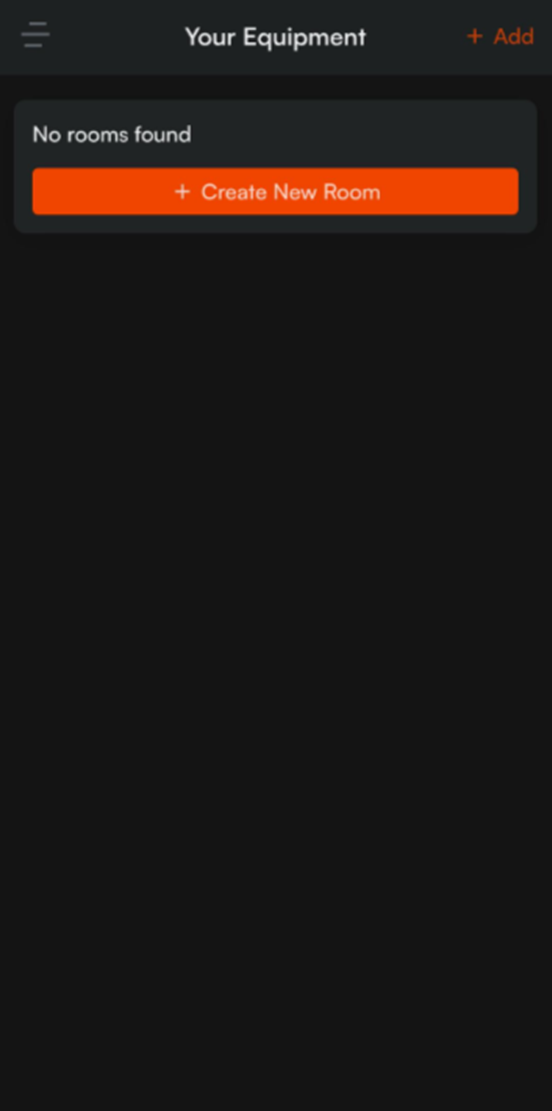

3) Tap the ‘+Add” button at the top right of the following page:
4) Select the Room you wish to add the new controller to, or tap the “Create New Room” button to create a new room for the new hardware to be added:

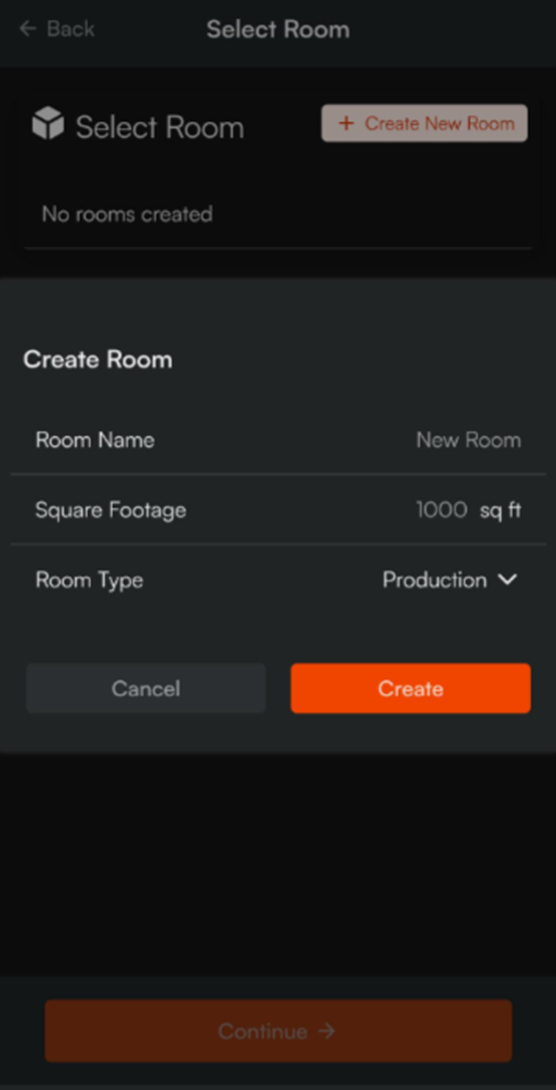

5) Provide a name for the Room, the Square Footage of the Room, and the Room Type, followed by tapping the 'Create’ Button to finish creating that room:

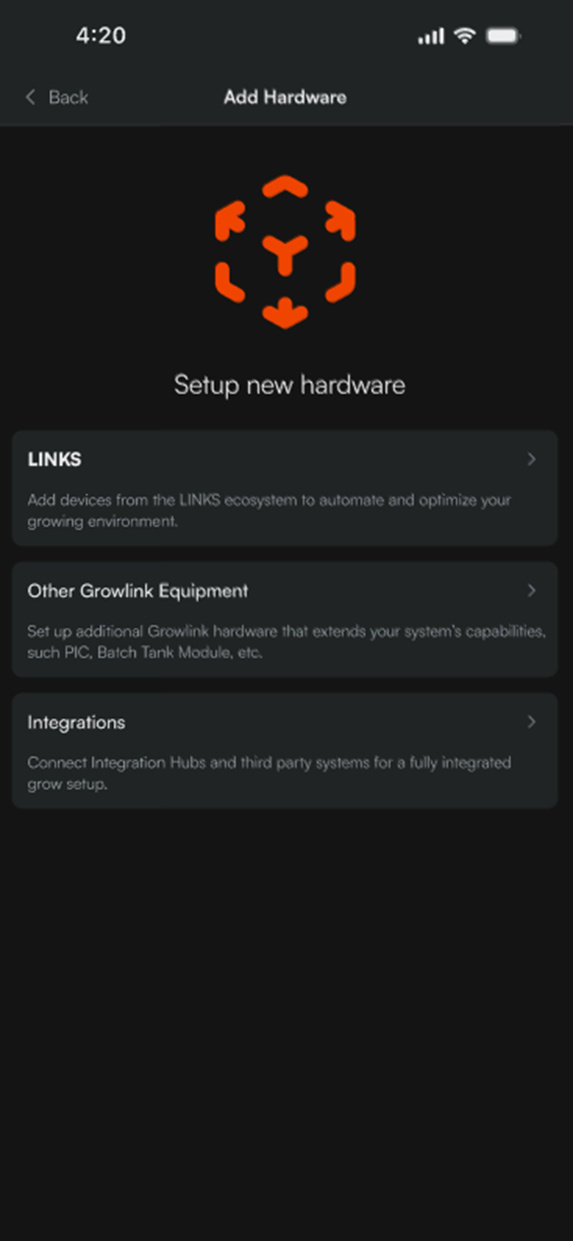

6) Select the appropriate option in the following menu based on what type of controller that is currently being connected. Tap ‘LINKS’ if you are bringing a LINKS device online such as a LINKS Hub, ‘Other Growlink Equipment’ if you’re connecting a Precision Irrigation Controller (PIC) or Batch Tank Module (BTM), and tap ‘Integrations’ for Integration Hubs such as the Agrowtek Integration Hub and Trolmaster Integration Hub:

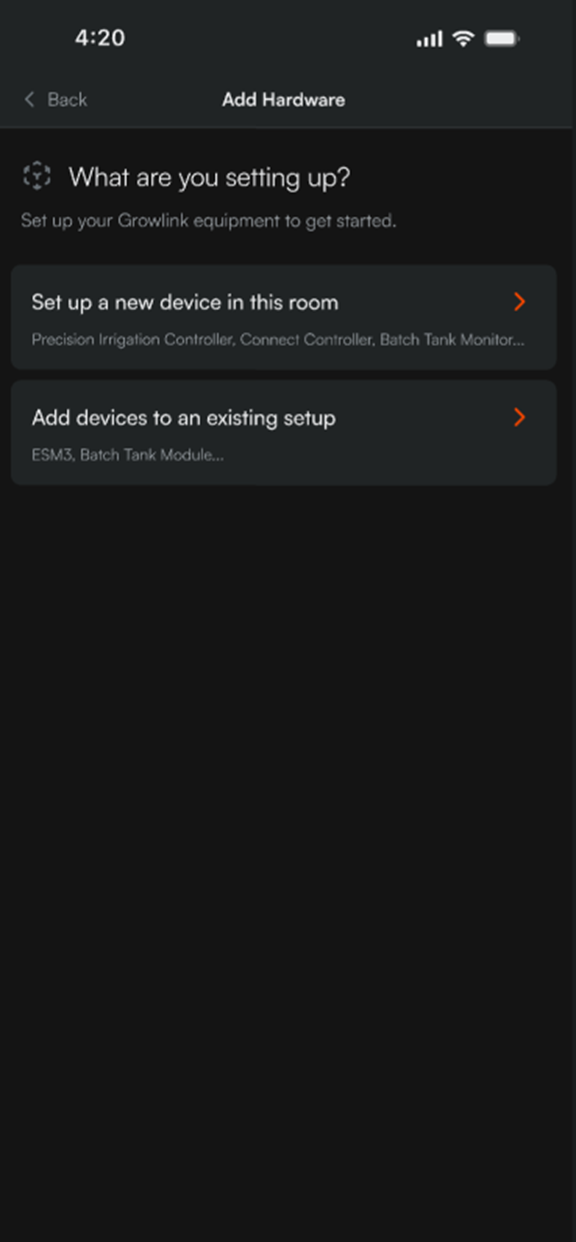

7) In the following menu, select ‘Set up a new device in this room’:

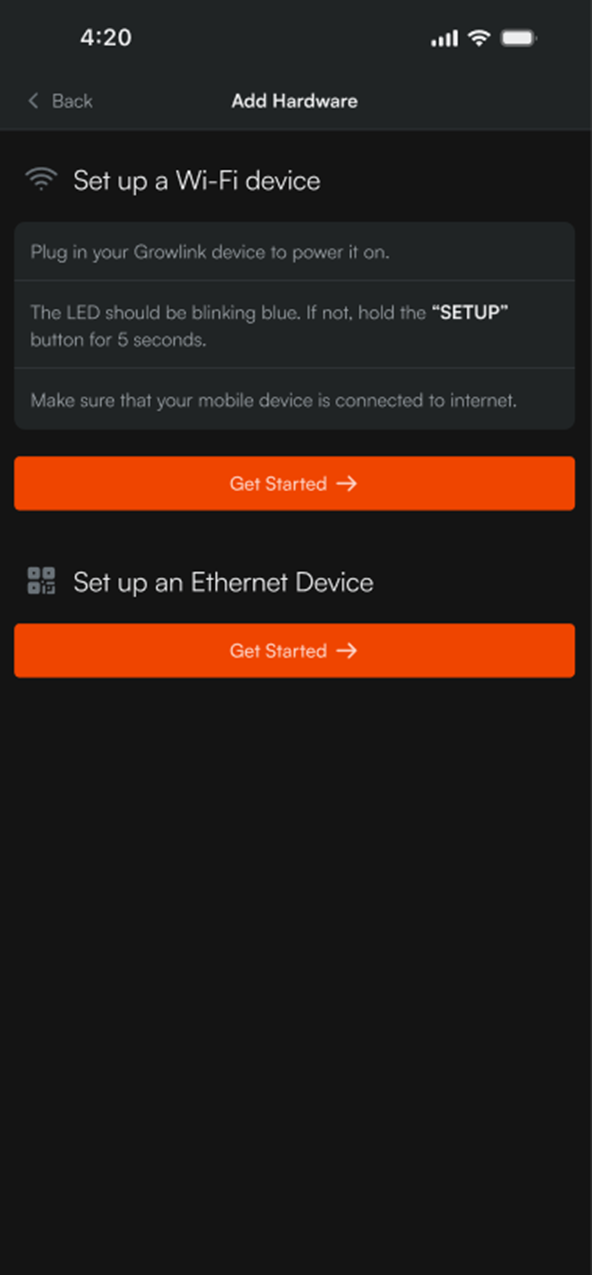

8) Next, tap the ‘Get Started’ button underneath the ‘Set up a Wi-Fi Device’ section:

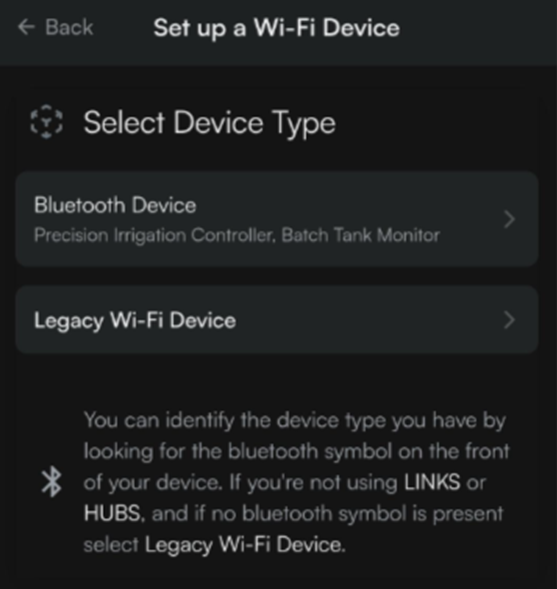

9) The following screen will then attempt to pair your phone with the Wi-Fi capable device. Select the appropriate pairing method for your device. Devices that pair via Bluetooth will have a Bluetooth symbol on their enclosure and older Legacy Devices without that symbol pair via a temporary WiFi SSID:

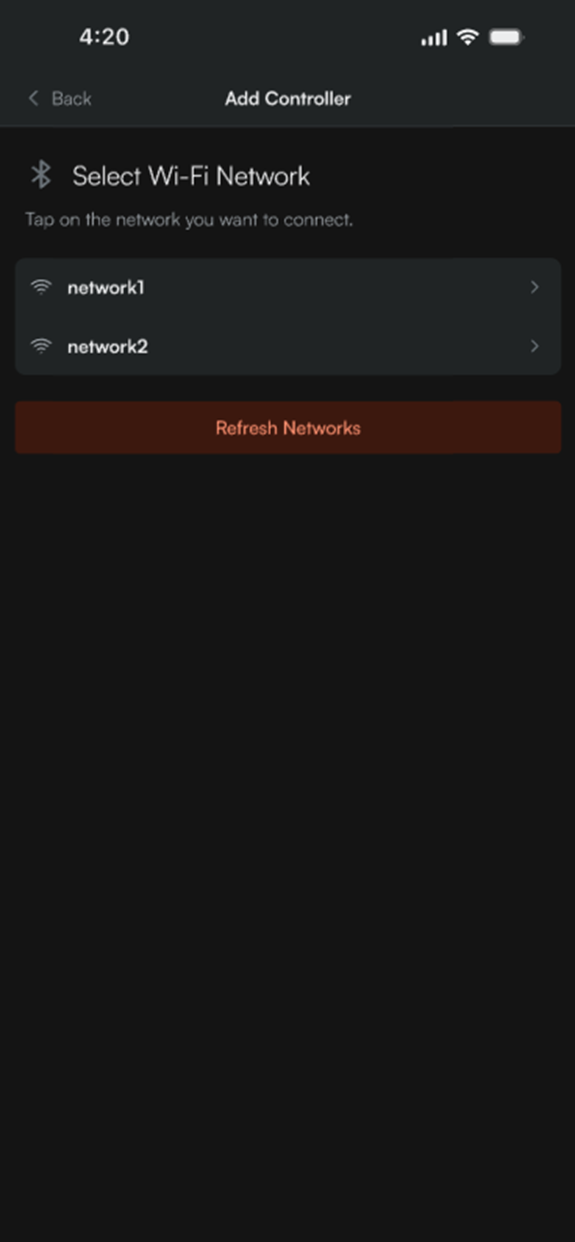

10) Once the controller is paired to your phone, you will then select the WiFi network you wish to connect the controller to, followed by inputting the password for that network:

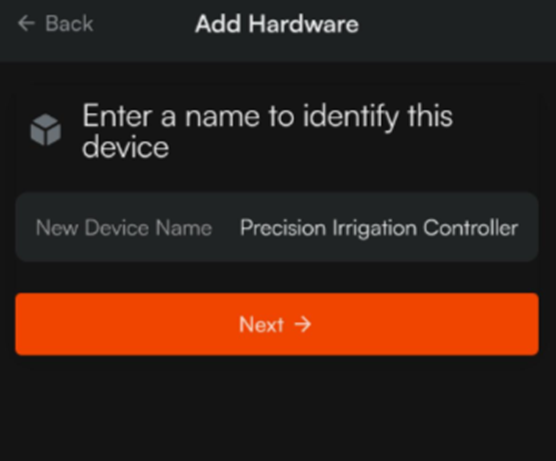

11) Once WiFi credentials have been provided, all that is left is to name the controller and tap the ‘Next’ button on the following screen. The Mobile app will then attempt to register the controller to your account and pass those credentials towards the controller:

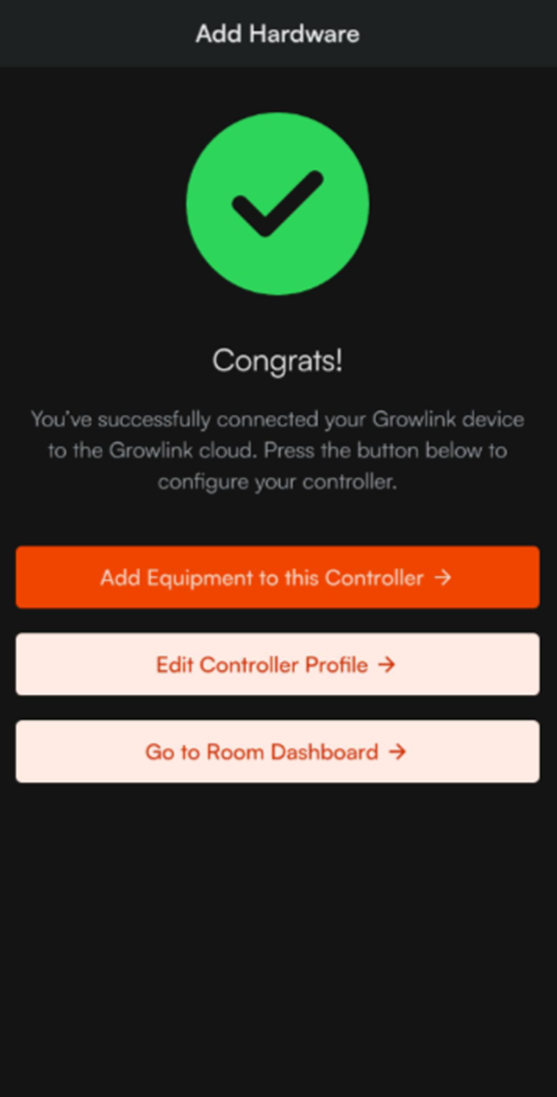

12) Once successfully connected, the following success message will display. Tap the ‘Add Equipment to this Controller’ to add more hardware to this controller, Tap the ‘Edit Controller Profile’ button to update the Controller Profile Settings, or tap the ‘Go to Room Dashboard’ button to view the dashboard for the newly connected controller:
